King Starboard - Kiddie Marine Fire Extinguisher Bracket
King Starboard - Kiddie Marine Fire Extinguisher Bracket
Couldn't load pickup availability

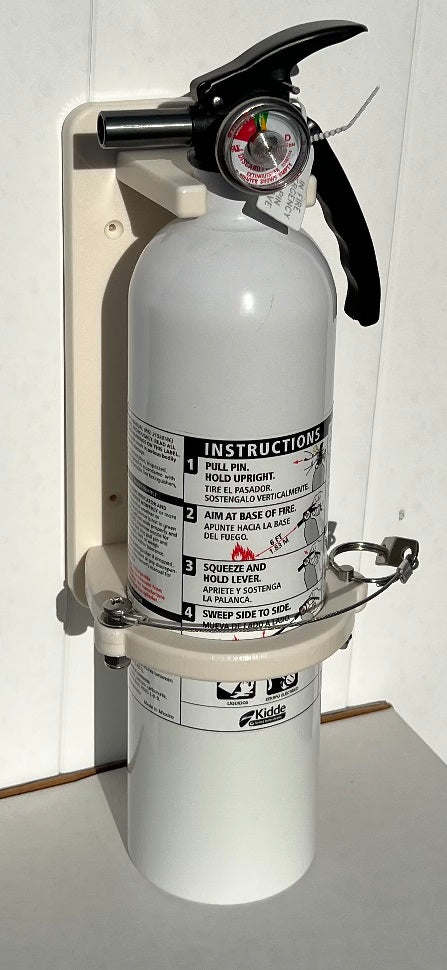

Marine Boat King Starboard Fire extinguisher holder.
Machined out of 1/2” king starboard, this holder is very robust!
These holders fit the 3.25” diameter kiddie fire extinguishers sold at west marine and other places. Series 5, 10, and 110.
The upper arm of the holder has a tight lockup on the fire extinguisher neck. It audibly snaps into place but still pulls out with a firm tug.
The lower arm has a light lockup on the main body of the bottle. It audibly snaps into place like the upper arm but it’s much softer to facilitate quick removal.
This design provides good mechanical retention but still pulls out easily when tilted up from the bottom, like someone would naturally do when pulling an extinguisher out of the holder.
With the lower arm rotated closed and pinned it is very tight, and keeps the bottle from bouncing around or rotating on its own.
The lower arm can be setup to open left or right hand.
There are 4 countersunk holes for mounting. They are drilled and countersunk for #8 flat head screws (or bolts). The mounting hardware is not included because bolt/screws and lengths many vary depending on your particular installation and 4 bolts /screws are around $2-4 at your local hardware store.
All hardware is stainless. Designed and manufactured in the USA.
Product dimensions 9" tall x 4.5" wide x 5" deep
